Fog Light Switch Wiring

$
0
0

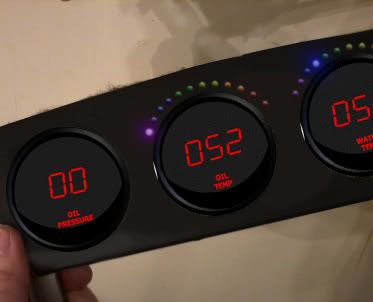

I've been working on a project to install 3 2" gauges in place of my clock on the center facia....



As you can see, I need to relocate my Fog Light Switch and the Hazard Switch. So, I'm going to buy two aftermarket stainless steel switchs to replace the stock switches. The problem is that I don't know if I need SPDT or DPDT for each switch. From what I know the Fog switch has 5 or 6 wires and the Hazards have 4 or 5. I found a diagram from the Tib manual but Im not sure how to read it too well. I'm guessing that in the diagram, in the box left of the "FRONT FOG LAMP SWITCH", the "O, P/B, W/O, B,Gr, B", are the wire colors, the "IND." is the bulb for the icon and the "ILL." is the bulb for the little green square on the switch itself. The aftermarket switch only needs a pole for the activation and pole for the lamp, right? Somebody help me im confused....


Heres what Im reffering to.....
